- 802.3af PoE, Class 0
- 7" TFT LCD touchscreen
- Use built-in cameras for two-way master-to-master video conferencing (w/ privacy shutter)
- Hands-free or push-to-talk communication
- 8 customizable speed dial buttons
- Turn your master into a virtual receptionist - ideal for unmanned waiting areas or unstaffed lunch hours
- Capture and store the audio and video of active conversations on a microSD card (not provided by Aiphone)

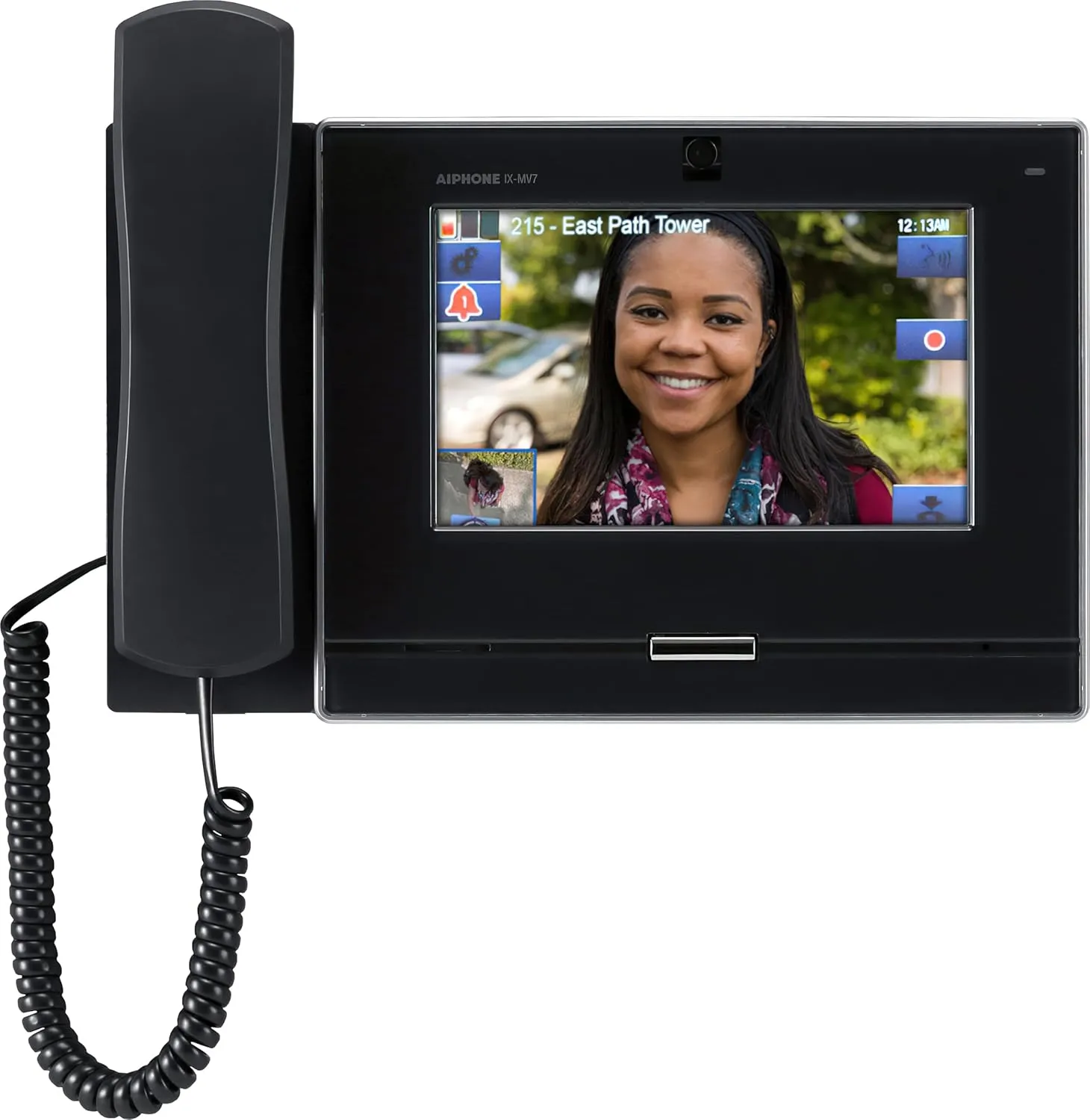

Aiphone IX-MV7-HB IP Addressable Hands-free or Handset Master Station, Black; 7" TFT LCD Touchscreen; Hands-free or Push-to-talk Communication; 8 Customizable Speed Dial Buttons; 600 Ohms Audio Input
The IX-MV7-HB is an IP addressable hands-free or handset master station with a 7" color touchscreen. It can be wall or desk mounted (desk stand included).
Key Features:
- 802.3af PoE, Class 0
- 7" TFT LCD touchscreen
- Use built-in cameras for two-way master-to-master video conferencing (w/ privacy shutter)
- Hands-free or push-to-talk communication
- 8 customizable speed dial buttons
- Turn your master into a virtual receptionist - ideal for unmanned waiting areas or unstaffed lunch hours
- Capture and store the audio and video of active conversations on a microSD card (not provided by Aiphone)
- Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously
- 2 contact outputs, 4 trigger inputs
- 8 Ohm 1/2 watt speaker output provides better coverage for announcements
- 600 Ohms audio input
Specifications:
- Power Source: PoE (IEEE 802.3af class 0)
- Power Draw: 4.32 Watts
- Camera: 1/3" CMOS, 720p
- Min. illumination: 5 Lux
- Audio Codec: G.711 (u-law, A law), G.722
- Video Codec: H.264/AVC, Motion JPEG
- Port Security: IEEE 802.1X
- Overall Dimensions (HxWxD): 8.06 x 11 x 2.18 inches
