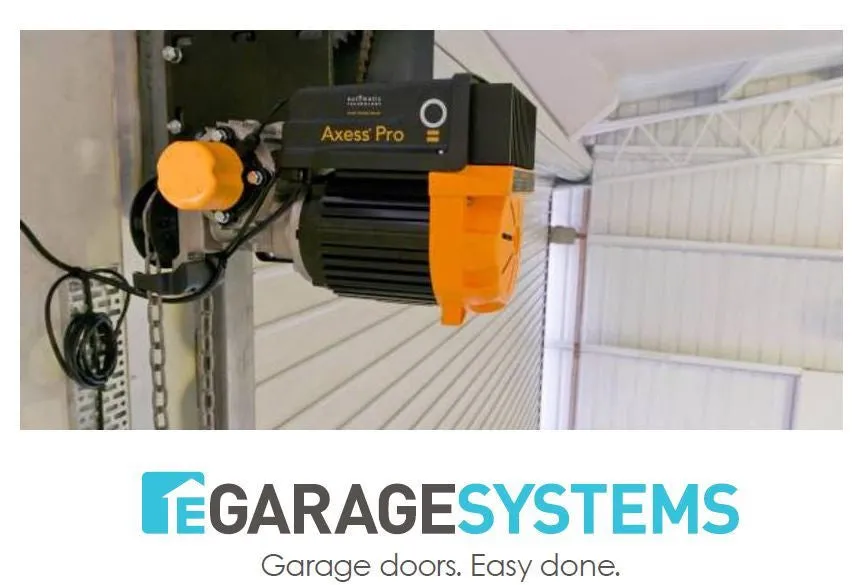

The Axess® Pro Series is ATA's flagship shutter opener boasting an inverter driven single phase motor, which offers soft start/stop operation, along with an oil-filled gearbox and optional logic controls.
The ATA Axess Pro 3110 includes the Axess® Pro Powerhead, Lockable L1 Logic Control Box With key Isolation & Open Close & Emergency Stop Buttons, 14-tooth drive sprocket, and a 10B Drive Chain (1.5m length).
Specifications:
- Input Power - 230-240V 1-phase 50Hz
- Motor Type - Induction
- Motor Wiring - Delta
- Motor Power - 1 HP (750W)
- Maximum Door Height - 30.5 Output shaft turns (approx 8m)
- Duty Cycle - 60%
- Soft Start/Stop - Yes
- Transmitter Memory - 511
- Transmitter Type - TrioCode™128
- Controlling Inputs - SWP, CLS, FIRE, OPN, STP, GPI (OSC)
- Controlling Outputs - AUX OUT
- Wireless Safety Beam Compatible - Yes
- Please Note - This item is a special order item direct from the manufacturer - please allow an additional 3-5 business days for delivery.
Compatibility
- Roller Shutter Doors - 36m²
- Wind locked Roll Up Door - 28m²
