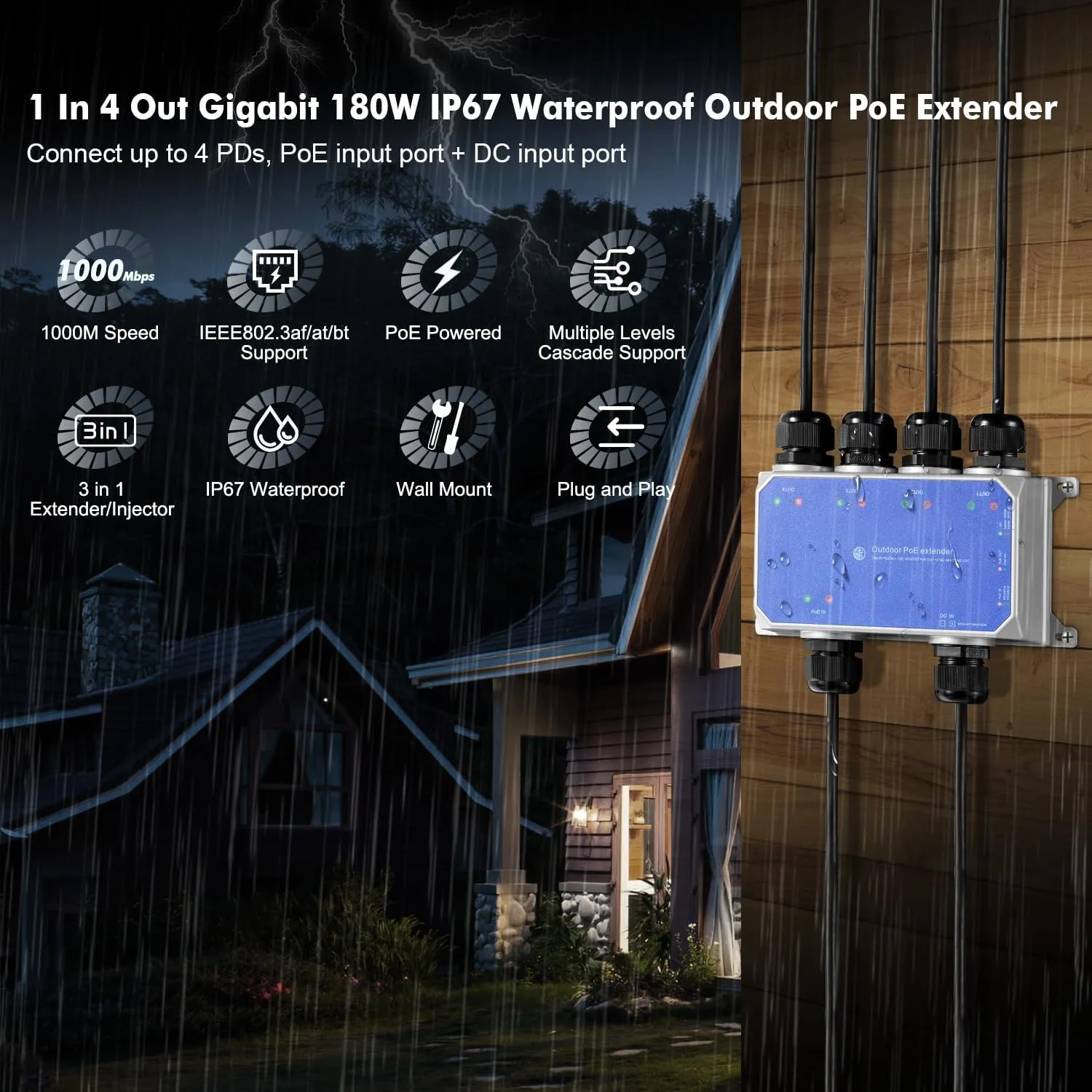

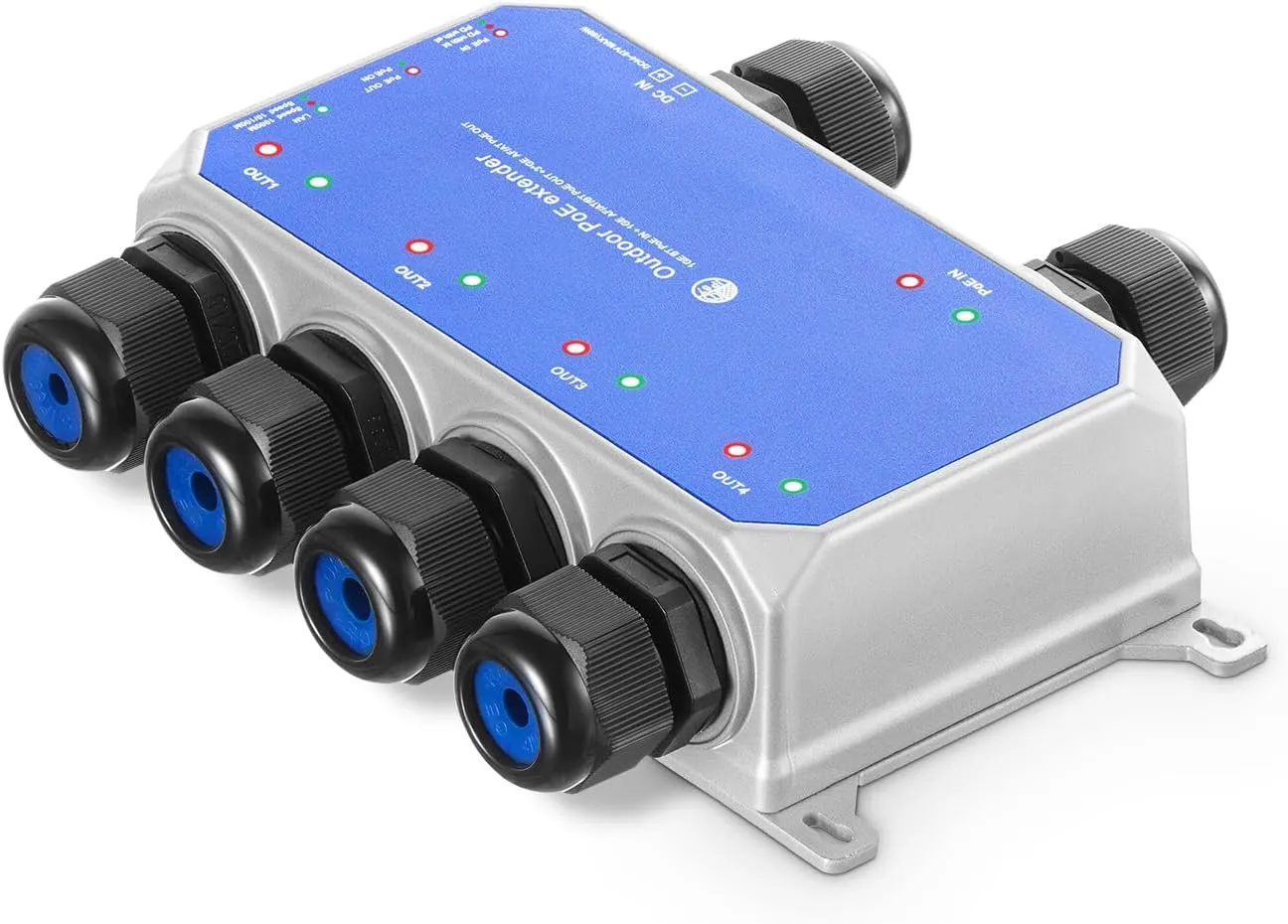

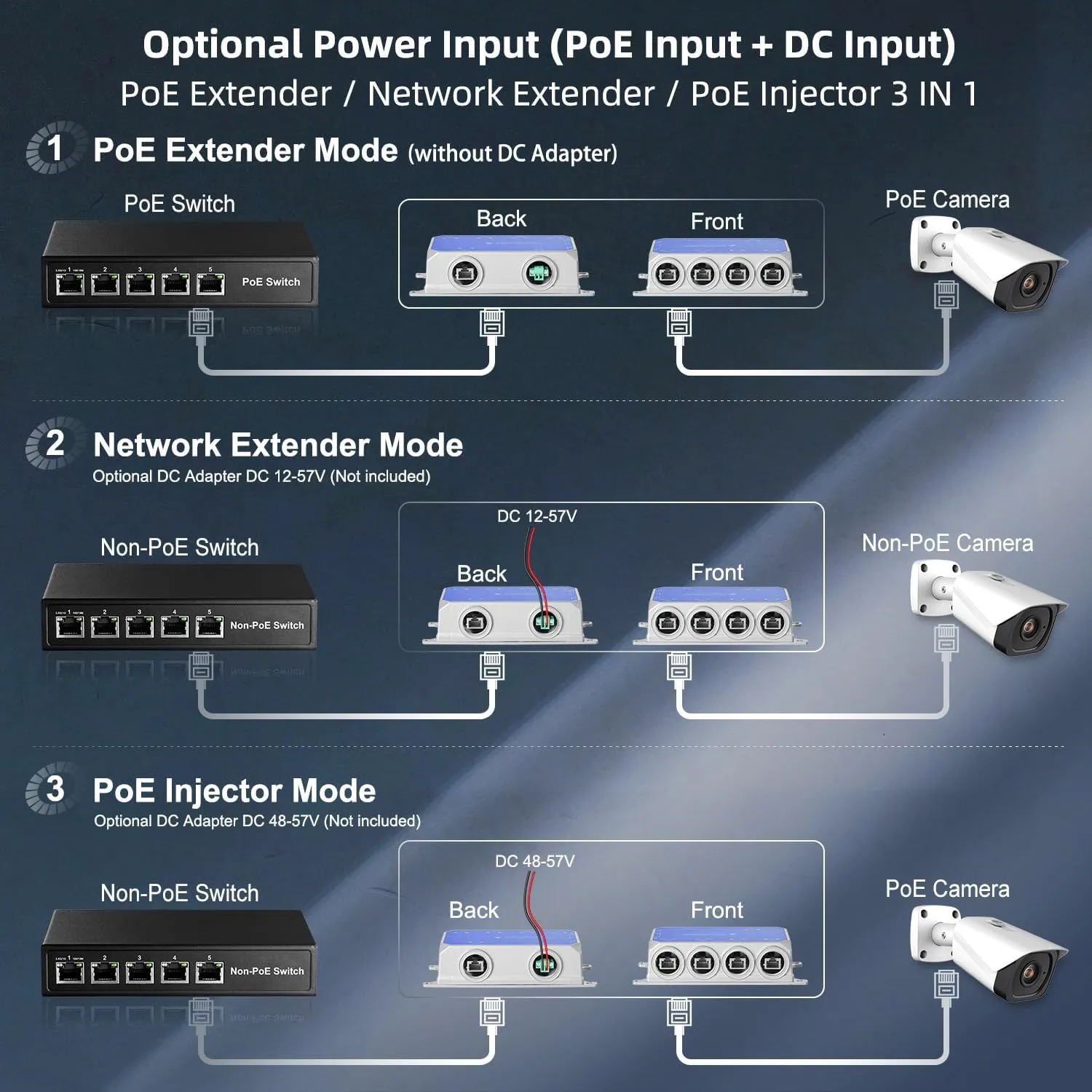

• 【Gigabit PoE Passthrough】Include 1 PoE In 4 PoE Out Gigabit Ports, 10/100/1000Mbps auto-adaptive rate. Powered by PoE network, no AC power supply required. Also support DC44-57V Max180W power input and provides phoenix terminal power interface for more flexible power supply.

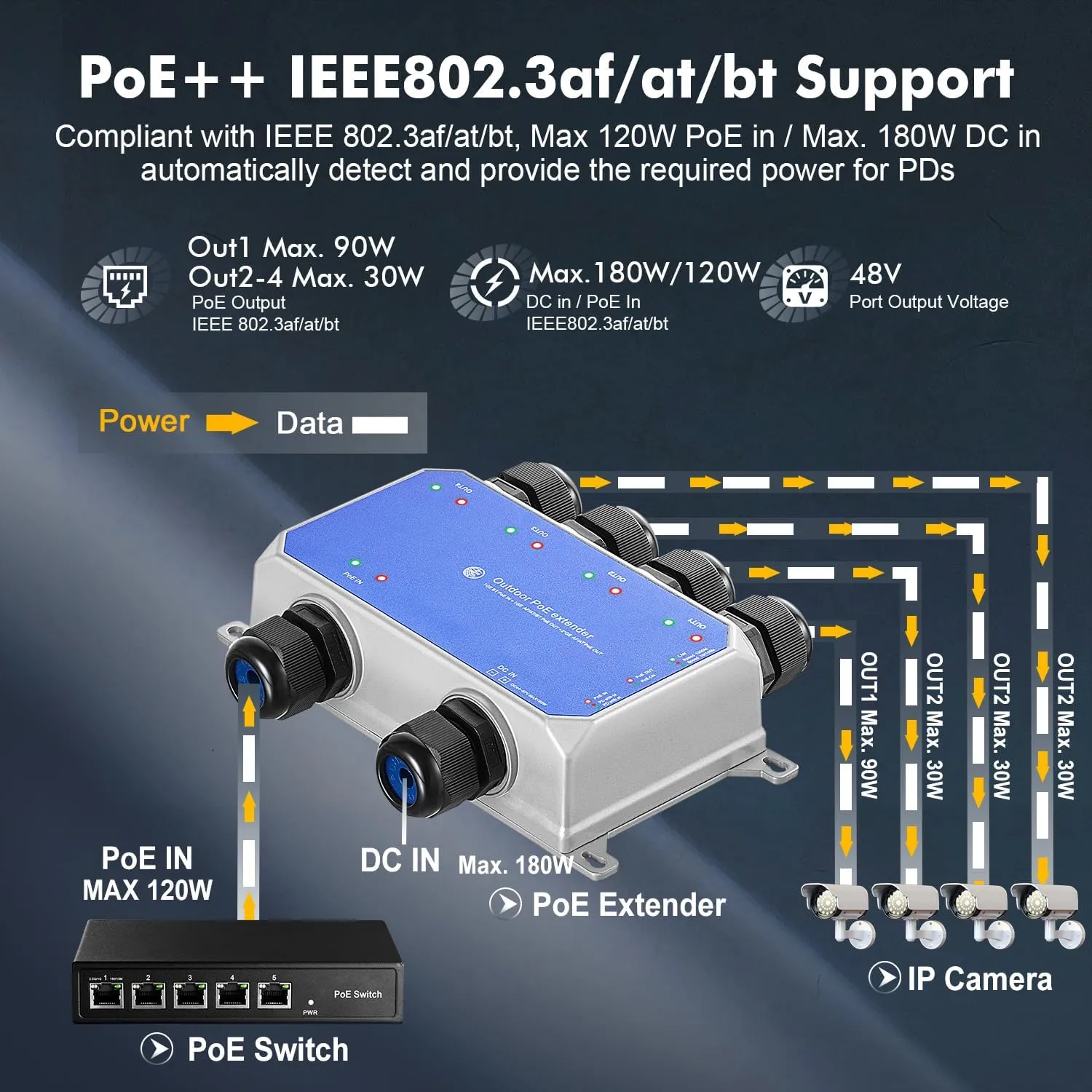

• 【IEEE 802.3 af/at/bt】 Support standard PoE, Input Max 120W(IEEE802.3af/at/bt), Out1 Max 90W(IEEE802.3af/at/bt), Out2-4 Max 30W(IEEE802.3af/at). PoE Voltage 44-57 Vdc. PoE pin: Input/Out1: 1/2 ( ), 3/6 (-), 4/5( ), 7/8(-);Out2-4: 1/2 ( ), 3/6 (-)

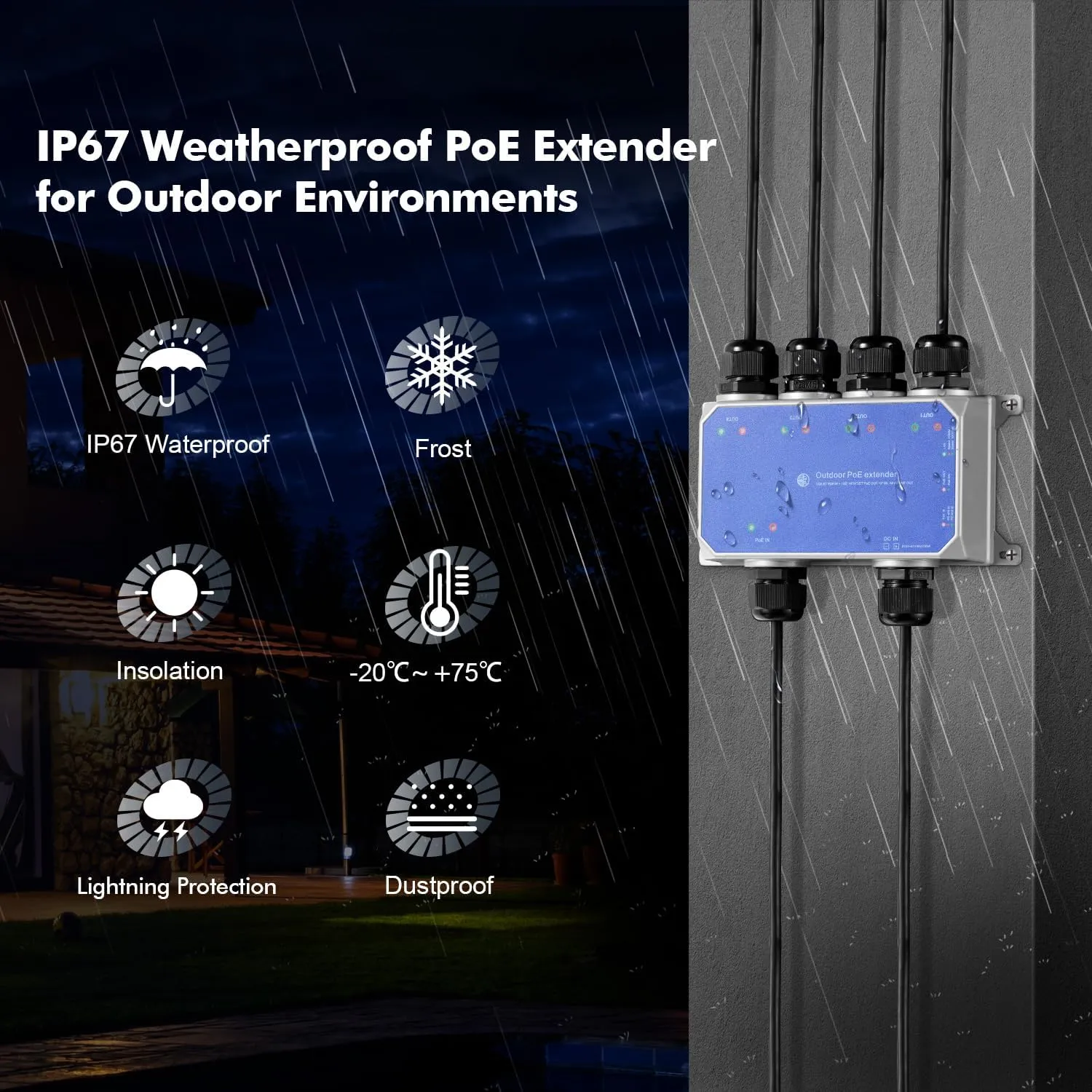

• 【Outdoor IP67 Weatherproof】 Industrial grade aluminum die-casting body, nylon waterproof joint, cable interface all protected in the shell, with better waterproof, dustproof, snowproof effect, more suitable for outdoor use; also suitable for complex indoor environment, such as warehouses, computer rooms, garages, attics, etc.
• 【Plug & Play】 Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE*.
• 【Easy Install】 Support wall mount, smaller size save space, LED indicators clearly show port status, suitable for many positions. Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost at variety of complex environments
