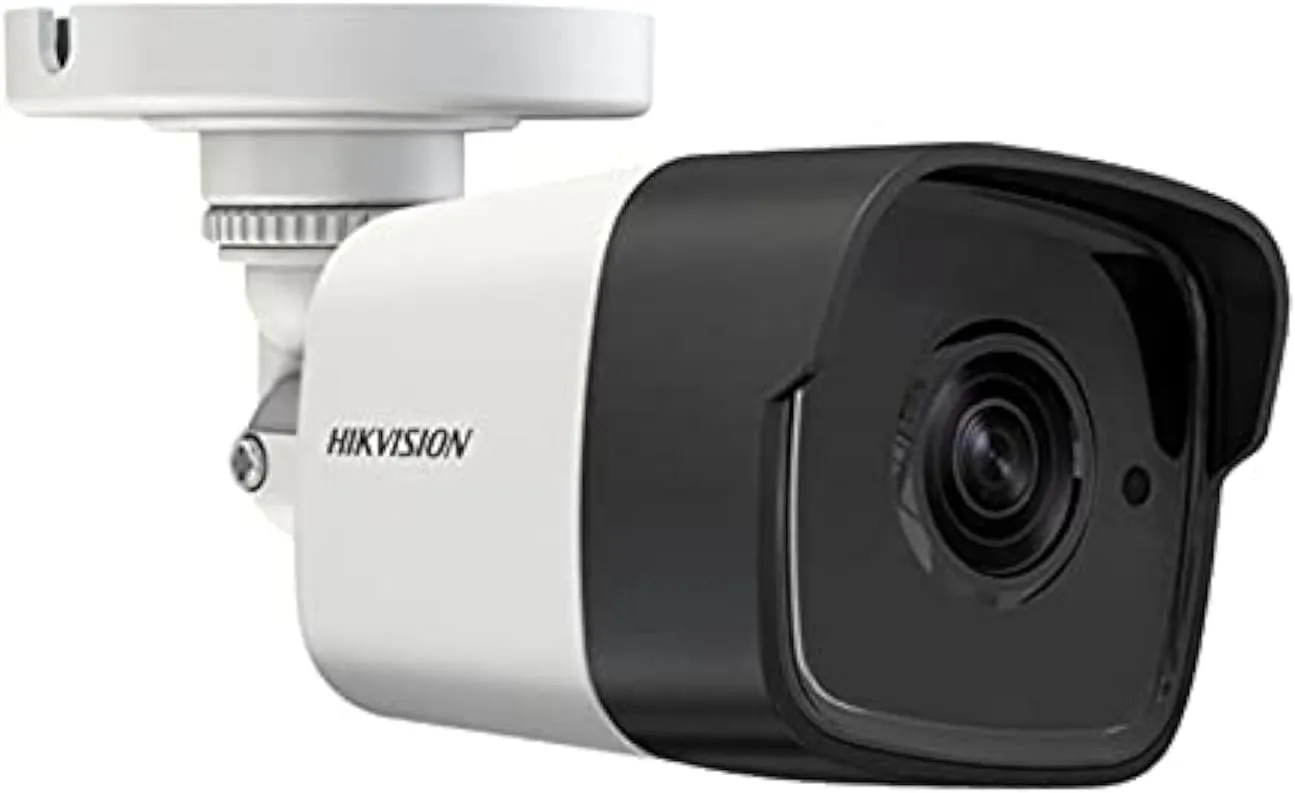

Ds-2ce16d7t-it1/it3/it5 hd1080p wdr exir bullet camera 2 megapixel high-performance cmos analog hd output, up to 1080p resolution true day/night osd menu, dnr, smart ir true wdr, up to 120db exir technology, up to 20/40/80m ir distance ip66 weatherproof camera image sensor: | 2mp cmos image sensor signal system: | pal/ntsc effective pixels: | 1928(h)*1088(v) min. Illumination: | 0. 01 lux @ (f1. 2, agc on), 0 lux with ir shutter time: | 1/25(1/30) s to 1/50, 000 s lens: | 2. 8mm, 3. 6mm, 6mm, 8mm, 12mm, 16mm optional angle of view: 103°(2. 8mm), 82. 2°(3. 6mm), 54°(6mm), 37. 7°(8mm), 24. 3°(12mm), 18. 8°(16mm) lens mount: | m12 adjustment range: | pan: 0° - 360°; tilt: 0° - 90°; rotate: 0° - 360° day& night: | ir cut filter with auto switch wide dynamic range: | 120db video frame rate: | 720p@25fps/720p@30fps hd video output: | 1 analog hd output synchronization: | internal synchronization s/n ratio: | more than 62 db menu d/n mode: | color/bw/smart auto white balance: | auto/mwb blc: | support agc: | support language: | english/chinese function: | wide dynamic range, digital noise reduction, mirror, smart ir general operating conditions: | -40 °c - 60 °c (-40 °f - 140 °f) humidity 90% or less (non-condensing) power supply: | 12 vdc±15% power consumption: | max. 5w weather proof: | ip66 ir range: | up to 40m communication : | up the coax protocol: hikvision-c(coaxitron) dimension: | 86. 7mm×81. 6mm×226mm (3. 41″×3. 23″×8. 67″) weight: | approx. 680g (1. 5lb) up the coax(hikvision-c)
