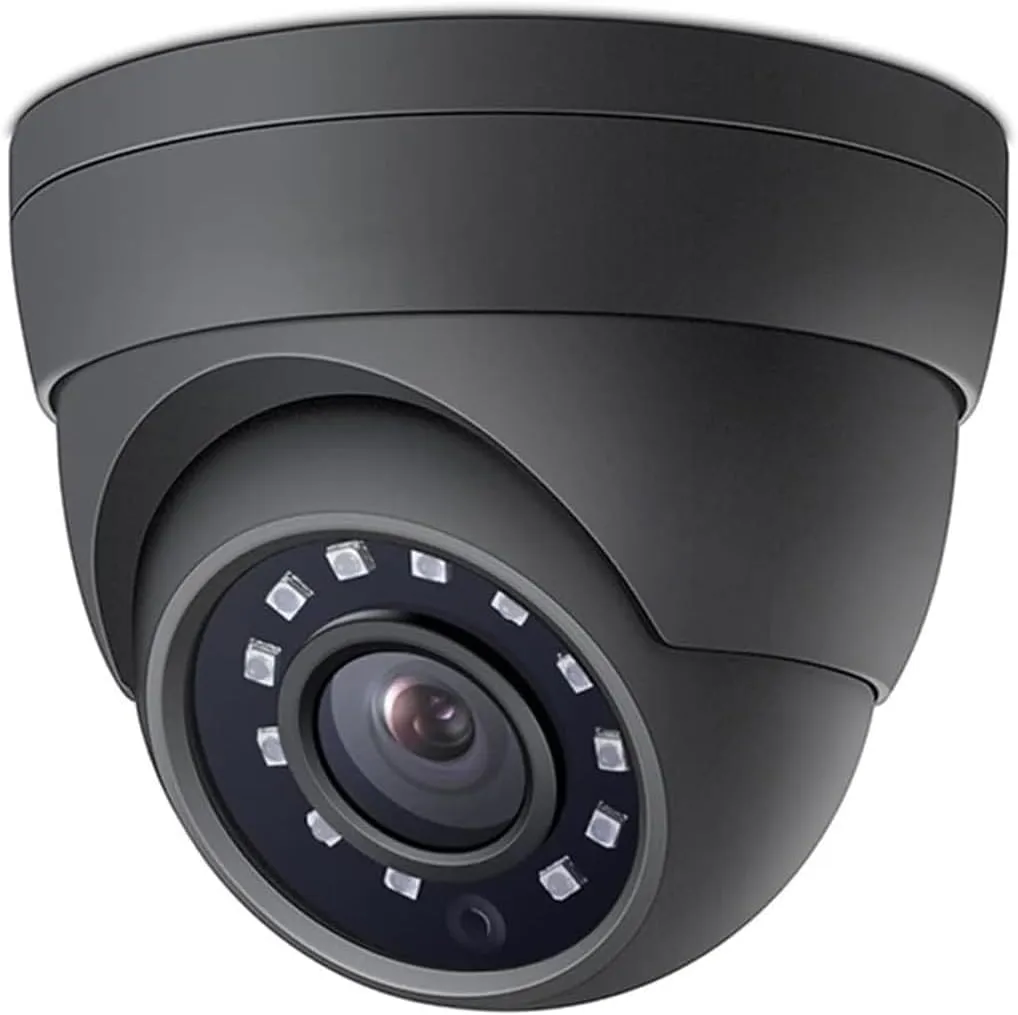

- This camera is 2 Megapixels high definition 1080p HD TVI/AHD/CVI/960H(1000 TVL), 65ft IR night vision range. It has a 2.8mm Fixed lens with 100 degrees wide Field of View (FOV) to cover large areas
- This BNC camera has 4 Resolution Outputs – Supports 1080P HD-TVI, HD CVI, AHD, and 960H 1000TVL. It can work with TVI DVR, CVI DVR, AHD DVR, and analog DVR. The Default Video output is 1080P AHD Mode, compatible with all DVRs by switching to video output mode. Video Mode must be switched according to your 1080P DVR type.

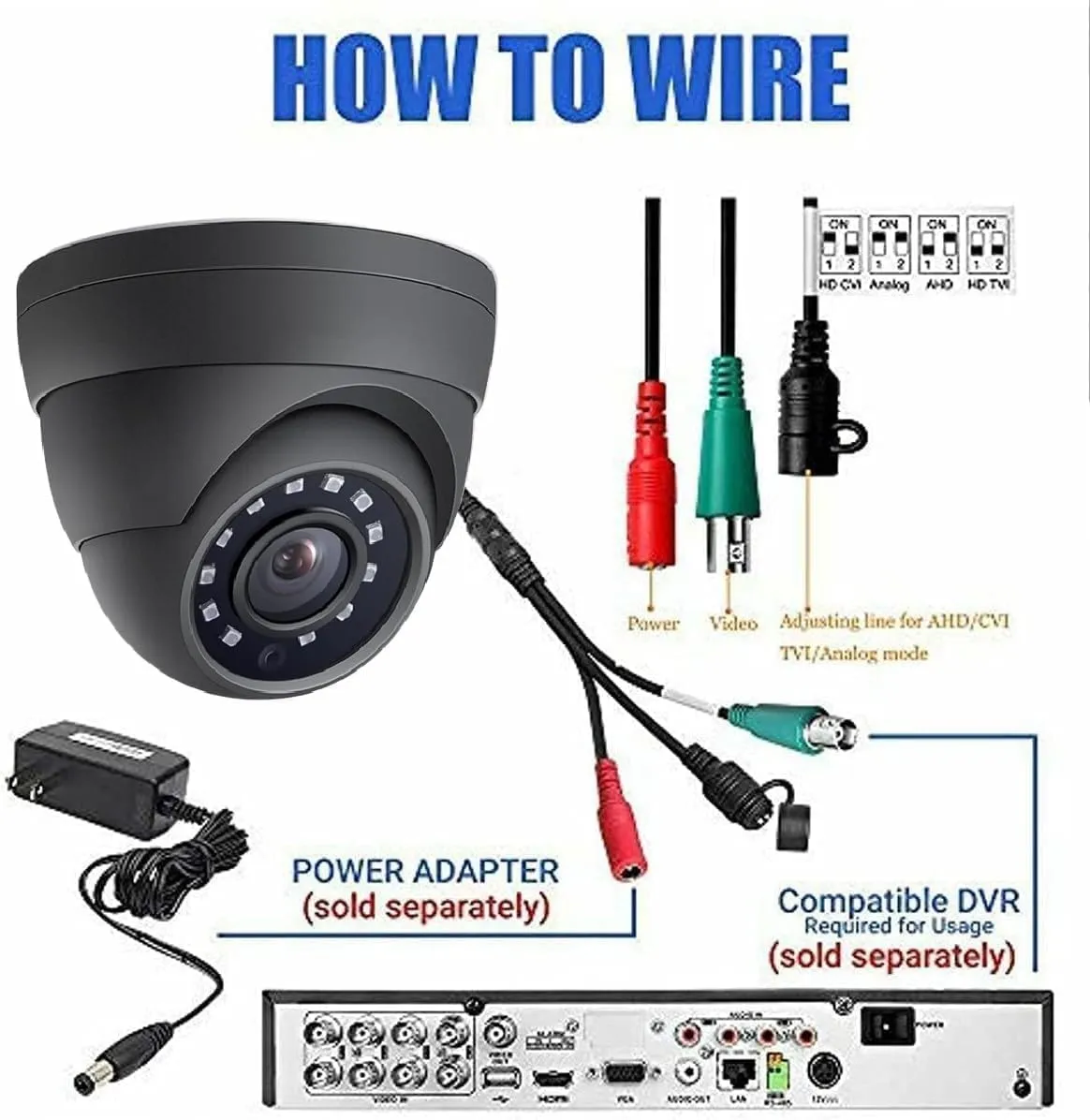

- DIP Switch – Easy switch of your camera video output format (TVI/CVI/AHD/CVBS).
- This BNC security camera can work indoors and outdoors, come with IP66 weather-rated metal housing, and operating temperature is -40°F ~ 140°F.
- Note: This 4-in-1 security camera does not have a recording or remote view feature, it requires a DVR for recording video. Video mode can be switched based on the DVR video mode. Please feel free to contact the seller.
You must know before you buy:
1. This 4-in-1 security camera requires a DVR for recording video. It supports 1080P TVI DVR,HD CVI DVR, AHD DVR, and 960H DVR. It does not support IP NVR.
2. In TVI, CVI, AHD DVR Mode, camera resolution is 1080P. In CVBS (960H) mode, resolution is 1000TVL.
3. Camera resolution is 1080P. If connect to 720P DVR or 960H DVRS, it won’t work. Please make sure your DVR supports 1080P TVI/CVI/AHD signal input otherwise switch camera to Analog.
4. If need to remote view by App, customer needs to use the APP of DVR Technical Parameters: - 1/2.9" CMOS sensor - Resolution: 1920x1080 - 65ft IR Range - TV System: NTSC - Video Output: HD-TVI(1080P),(AHD/TVI/CVI/CVBS) - Day &Night: Support (ICR) - Frame Rate: 25fps (50HZ), 30fps (60Hz) - Min illumination: 0.1lux(LED ON) 0.01lux(0-3 lux LED) - S/N Ratio:>52dB (AGC off) - Electronic Shutter: Auto 1/50s (1/60s)-1/100.000s - White Balance: Auto - Gain Control: Auto - Weatherproof for indoor/outdoor - Power Supply:DC12V 1000mA 4 in 1 video model, provides flexible for your security applications HD-TVI/ CVI/AHD/960H technology delivers zero latency HD video over RG59 coax or any standard analog CCTV cabling up to 1600’. With convenient DIP Switch control of settings over coax cabling, you can eliminate the need for a separate cable.
Note: This camera does not have recording or remote view feature, require DVR for recording, not wireless and do not support mobile view. Default mode is HD AHD, if you are using other type of DVR, like Analog DVR, please switch the video type follow the user manuals.
Package included: 1 x Dome camera 1 x Bag of mounting screws 1 x Installing Template 1 x Manual
