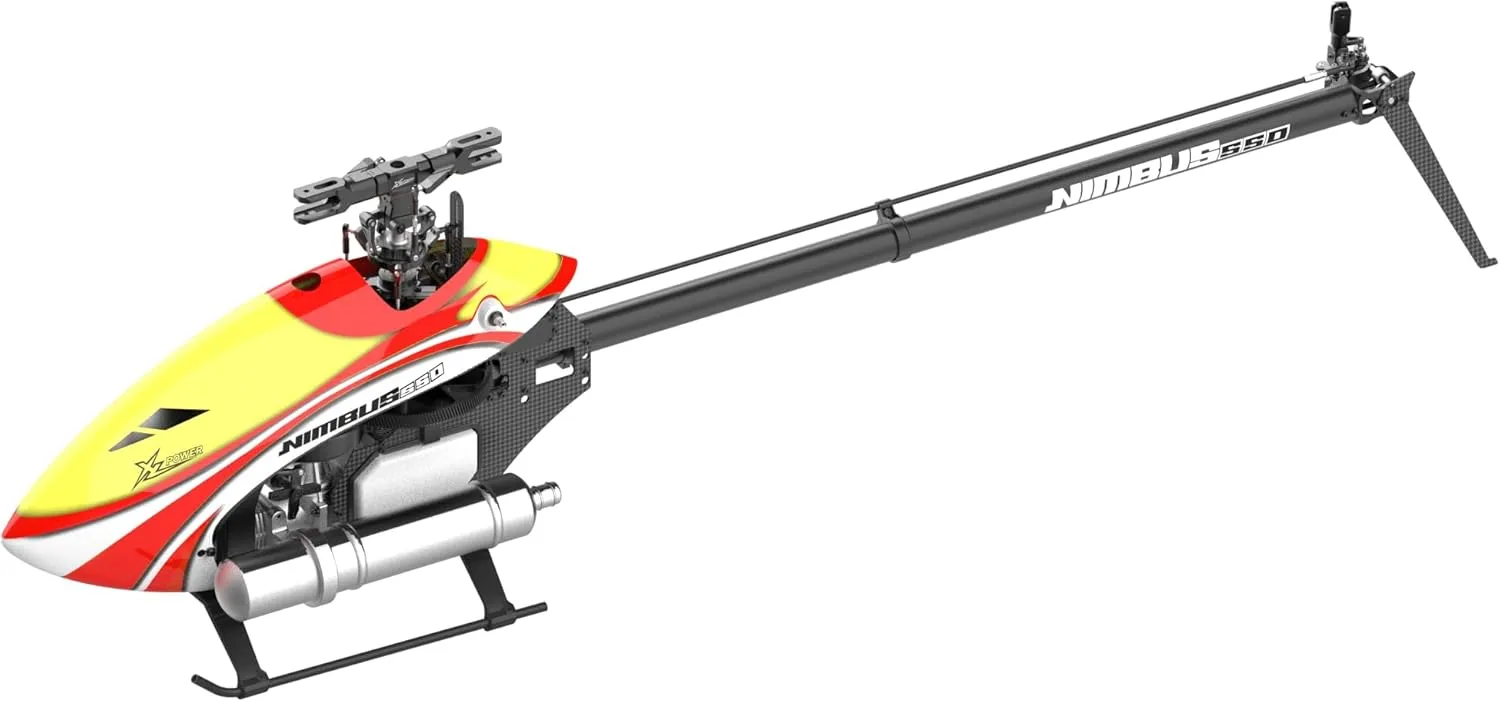

- High Performance 550 Size Nitro Helicopter! XLPower Nimbus 550 Nitro Helicopter. This sleek pre-painted model designed for hassle-free assembly and maximum flight time. Featuring a proven tapered clutch system for smooth operation and easy alignment, the Nimbus offers a 7.7 gear ratio ideal for demanding maneuvers with 550-580mm blades.
- Engine maintenance is a breeze with bottom access, while its single-piece aluminum bearing block assembly ensures rigidity and precise control. With innovative features like a 120-degree layout for cyclic servos and dual one-way bearings in the main gear hub, the Nimbus 550 Nitro redefines helicopter flying with efficiency and reliability.
- The nitro version of the Nimbus 550 comes stock with a redesigned upper swash plate to address unequal cyclic and collective differential. Additionally, it includes longer outer swash plate balls to enhance servo to swash plate geometry. These upgrades, along with the updated upper swash plate, maintain the proven effective control ratio seen in the electric Nimbus 550 model.
- Utilizing a tapered clutch system derived from its larger counterpart, the Nitro 700, the Nimbus 550 Nitro sets a standard for smoothness and alignment in clutch stacks. This advanced system not only ensures unparalleled smooth operation but also simplifies the alignment process, offering pilots an effortless experience when assembling and maintaining their helicopter.
- At the heart of the airframe lies a robust single-piece 7075 aluminum bearing block assembly and servo mount, enhancing overall rigidity and stability of both the frame and drivetrain. The arrangement of cyclic servos in a 120-degree layout optimizes control geometry for precise handling.
- Engine maintenance is streamlined with bottom access, allowing for quick removal without disrupting other assemblies, all achievable within minutes. Additionally, the engine cooling fan shroud can be independently removed from the side without requiring disassembly of other parts, further facilitating maintenance tasks.
Length without main blades : 1148mm Overall height: 315mm Width: 206mm Main gear: 170T Pinion gear: 22T (20T optinal) Main gear ratio: 7.7 (8.5 optional) Front tail pulley: 60T Rear tail pulley: 13T (12T optional) Tail Ratio: 4.615 (5.0 optional) Frame weight: 1500g Main shaft diameter: 10mm Feathering shaft diameter: 8mm Tail boom diameter: 27mm Tail belt width: 6mm Main gear thickness: 10mm Fuel tank: 345cc * Includes: 1 x kit
